EX-5
PRODUCT DESCRIPTION

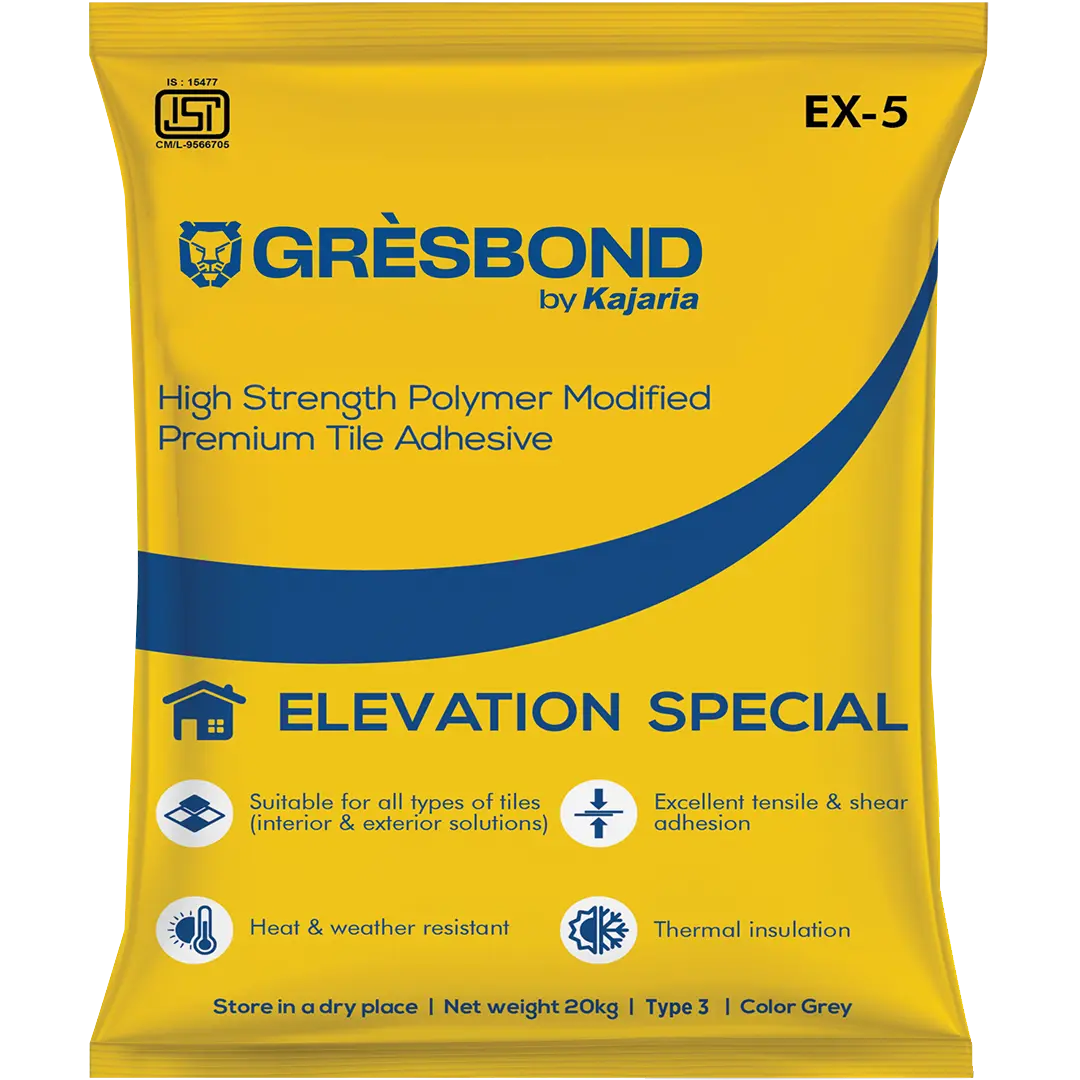

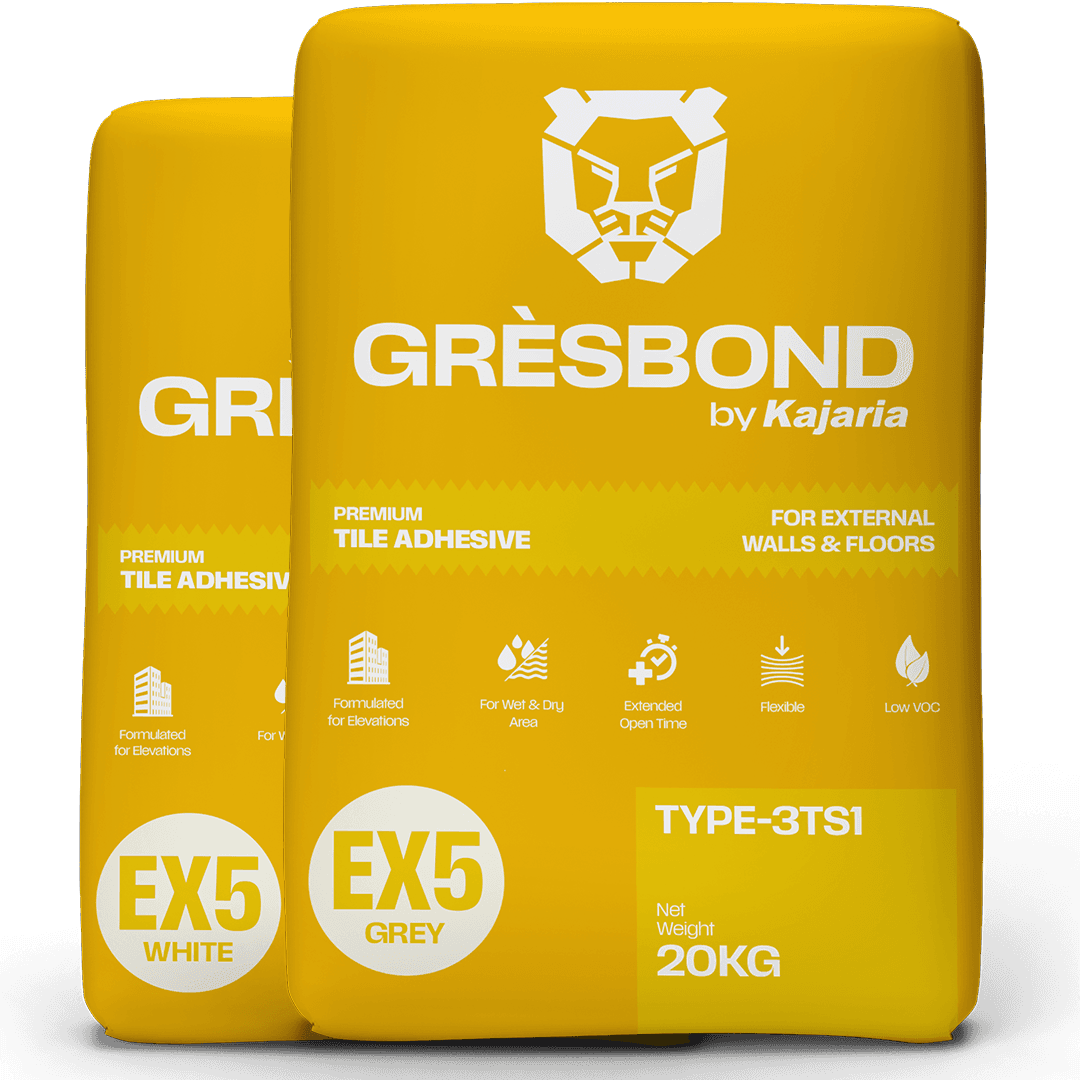

EX-5 High Performance, Polymer Modified, Non-slip Adhesive, EX-5 is an improved slip-resistant cementitious adhesive with extended open time, classified as C2TES1 according to ISO 13007 standards, Exceeds IS 15477:2019-Type 3TS1 Adhesive standards. This high polymer-modified adhesive is designed for tile-on-tile works and the installation of vitrified tiles, natural stones, and glass mosaics on walls and floors in both interior and exterior situations up to a 6mm bed thickness, which can be averaged up to 12mm. The set adhesive is water-resistant and suitable for use in wet areas like swimming pools and water bodies. Note: Not recommended for direct use onto gypsum plaster (wall finishes), paint, or meta
KEY PERFORMANCE FEATURES
Product Variants

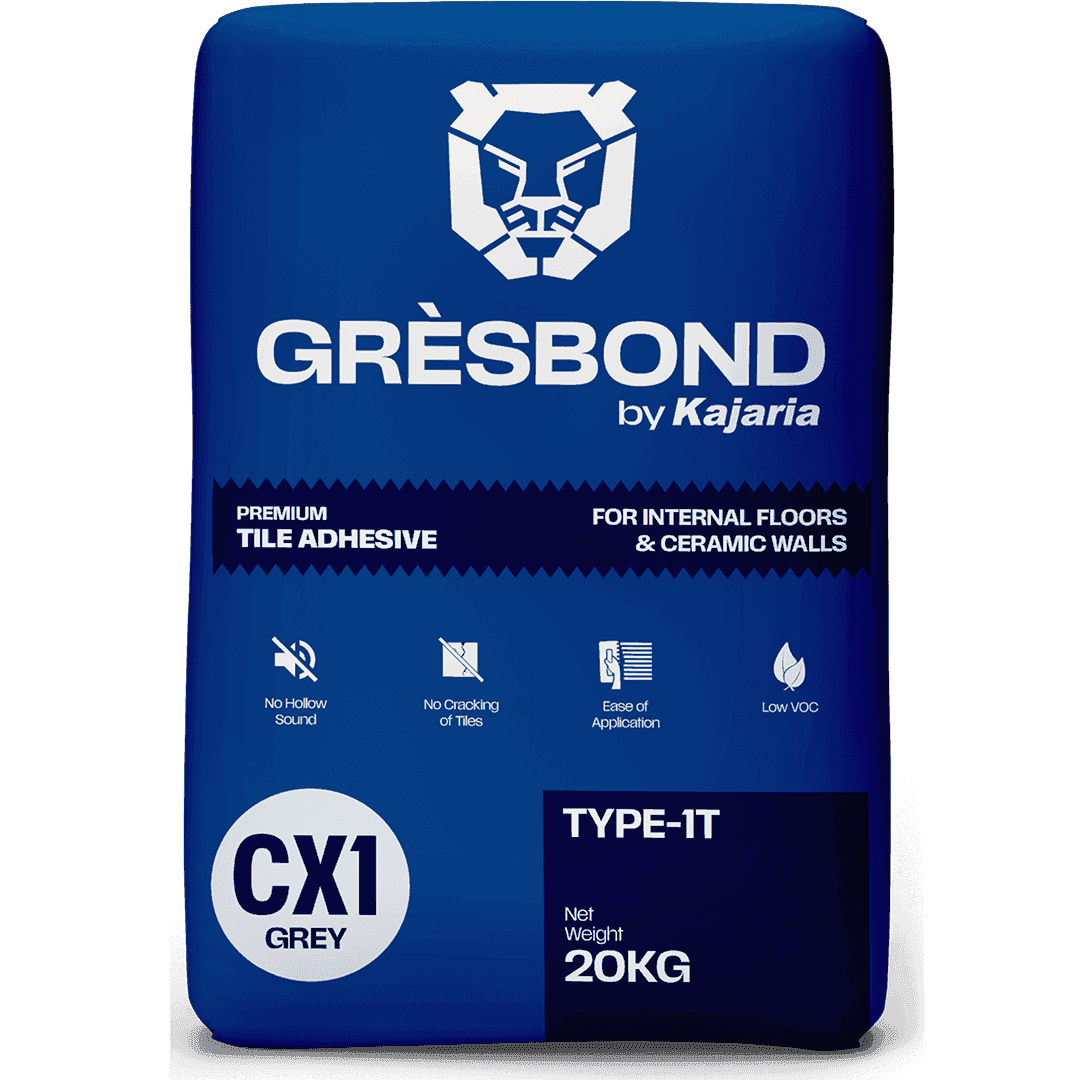

CX-1
cx-1CX-1 is a polymer-based tile adhesive specifically formulated for fixing ceramic tiles and small format natural stone, clay tiles, terracotta and quarry tiles of regular size. It is suitable for both vertical and horizontal surfaces, over the cementitious substrate for indoor application, in dry as well as wet areas. Easy to use with just water mixing, CX-1 is perfect for dry areas and occasional moisture environments like bathrooms and kitchens. Choose CX-1 for exceptional bond strength, flexibility, fast curing, and user-friendly application.
View Product
CX 2
cx-2CX-2 is a premium, white cement-based tile adhesive specifically formulated for interior wall and floor installations. Designed to preserve the aesthetic appeal of light-colored tiles and stones, this polymer modified adhesive delivers exceptional bond strength and flexibility. Ideal for fixing small format ceramic, natural stone, clay, terracotta, and quarry tiles, CX-2 is suitable for both dry and wet areas. Its user-friendly formulation requires only water for mixing, ensuring efficient application. Optimized for bed thicknesses up to 6mm, with the potential for 12mm in specific areas, CX-2 provides a reliable solution for cementitious substrates.
View Product
VX 1
vx-1VX-1 is a high-performance, polymer-modified, grey cement-based adhesive specifically designed for fixing low-porosity tiles (vitrified, semi-vitrified) and natural stones on interior and exterior floors, walls-interiors, and even swimming pools. It offers exceptional bond strength, water resistance, and ease of use. The adhesive is water-resistant and is suitable for use in showers, wet areas and swimming pools. Also, ideal for renovation (tile-over-tile) for quick & easy installation works. Its exceptional bond strength, flexibility, water resistance, and versatility make it the ideal choice for a wide range of applications. Confirms to IS 15477: 2019 Type 2T "Adhesives for use with Ceramic, Mosaic and Stone Tiles Note: Not recommended for direct use onto gypsum plaster (wall finishes), paint or metal. Not suitable for external wall installations, Not suitable for tiles and stones with mesh backing
View Product

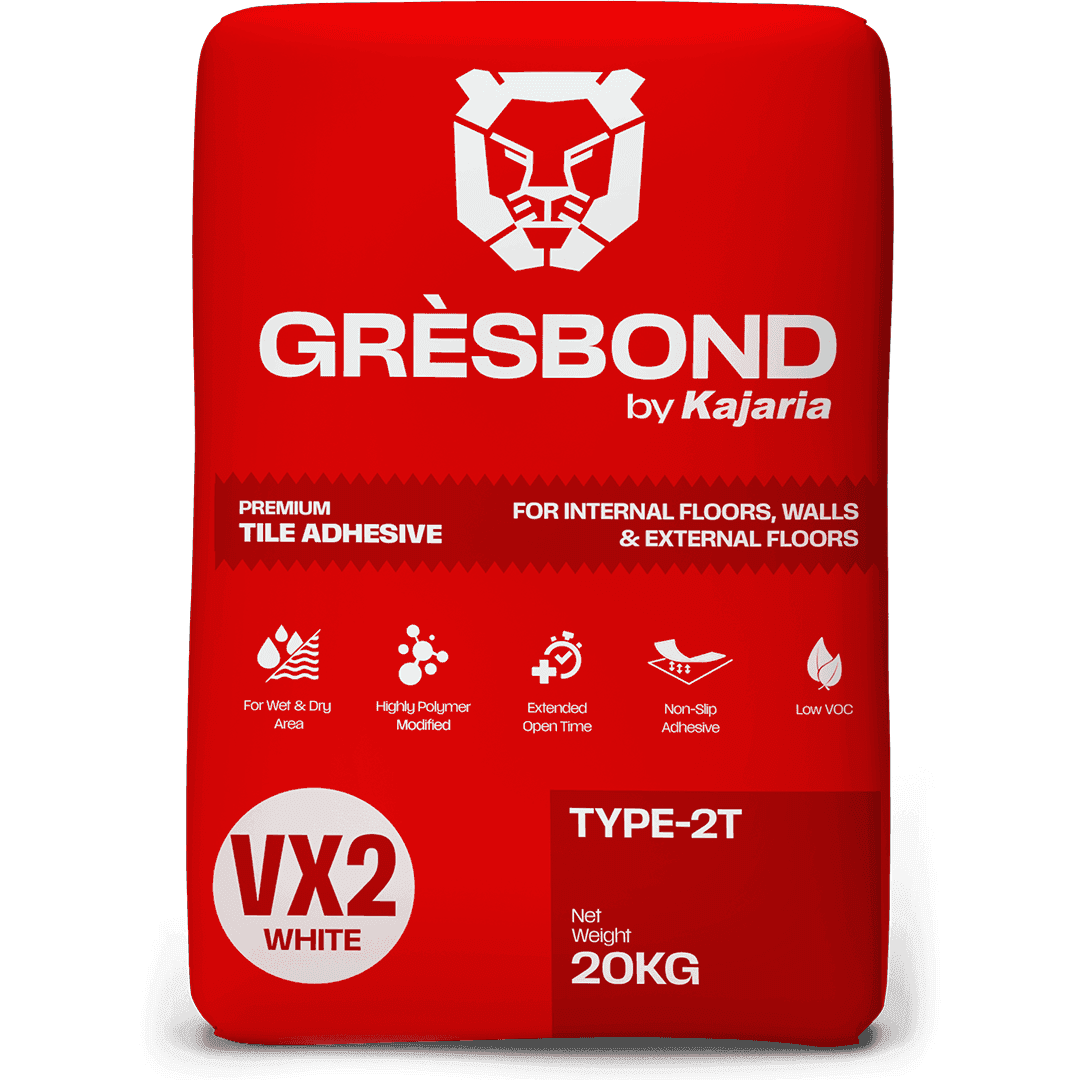

VX 2
vx-2-whiteVX-2 is a high-performance, polymer-modified, white cement-based adhesive for low-porosity tiles (vitrified, semi-vitrified) and natural stones, suitable for both interior and exterior floors, and interior walls. It provides excellent bond strength, water resistance, and ease of use, ideal for showers, wet areas, and swimming pools. VX-2 is perfect for renovations, allowing for quick tile-over-tile installations, and is suitable for mosaics, terrazzo, and light-colored natural stones. Confirms to IS 15477: 2019 Type 2T “Adhesives for use with Ceramic, Mosaic and Stone Tiles” Note: Not recommended for direct use onto gypsum plaster (wall finishes), paint or metal. Not suitable for tiles and stones with mesh backing.
View Product
EX 5
ex-5EX-5 High Performance, Polymer Modified, Non-slip Adhesive, EX-5 is an improved slip-resistant cementitious adhesive with extended open time, classified as C2TES1 according to ISO 13007 standards, Exceeds IS 15477:2019-Type 3TS1 Adhesive standards. This high polymer-modified adhesive is designed for tile-on-tile works and the installation of vitrified tiles, natural stones, and glass mosaics on walls and floors in both interior and exterior situations up to a 6mm bed thickness, which can be averaged up to 12mm. The set adhesive is water-resistant and suitable for use in wet areas like swimming pools and water bodies. Note: Not recommended for direct use onto gypsum plaster (wall finishes), paint, or meta
View Product

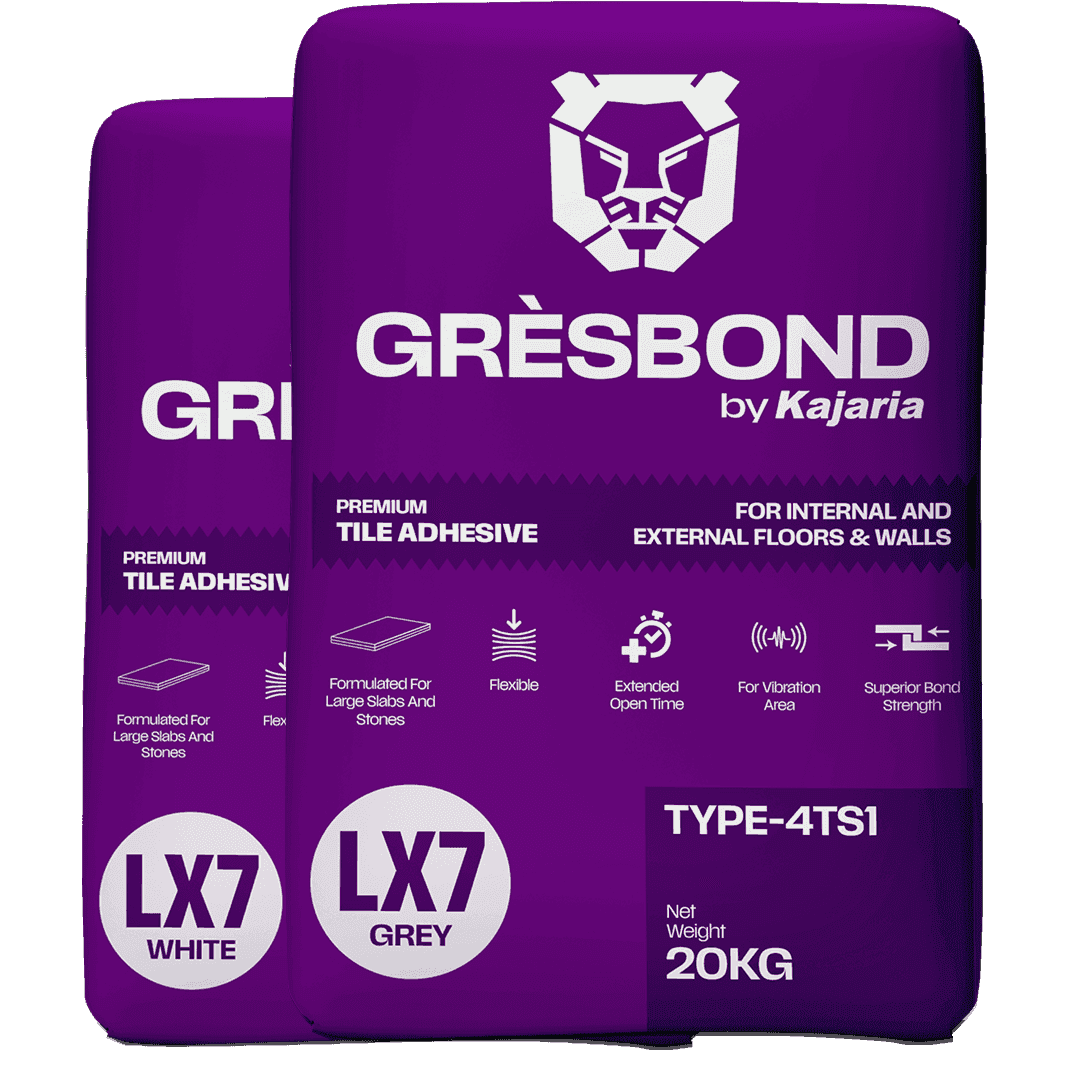

LX 7
lx-7A highly deformable, polymer-modified tile adhesive for largeformat tiles and stones. Suitable for both wall and floor installations. GRESBOND LX-7 S1 Super Flex is a multipurpose, highly polymermodified, and highly deformable adhesive designed for the installation of large-format tiles and stones on various substrates. Its superior flexibility accommodates movements in the substrate, ensuring exceptional performance with sag and slump resistance. Suitable for both wall and floor installations. Note: Not recommended for direct use onto gypsum plaster (wall finishes), paint, or metal.
View Product

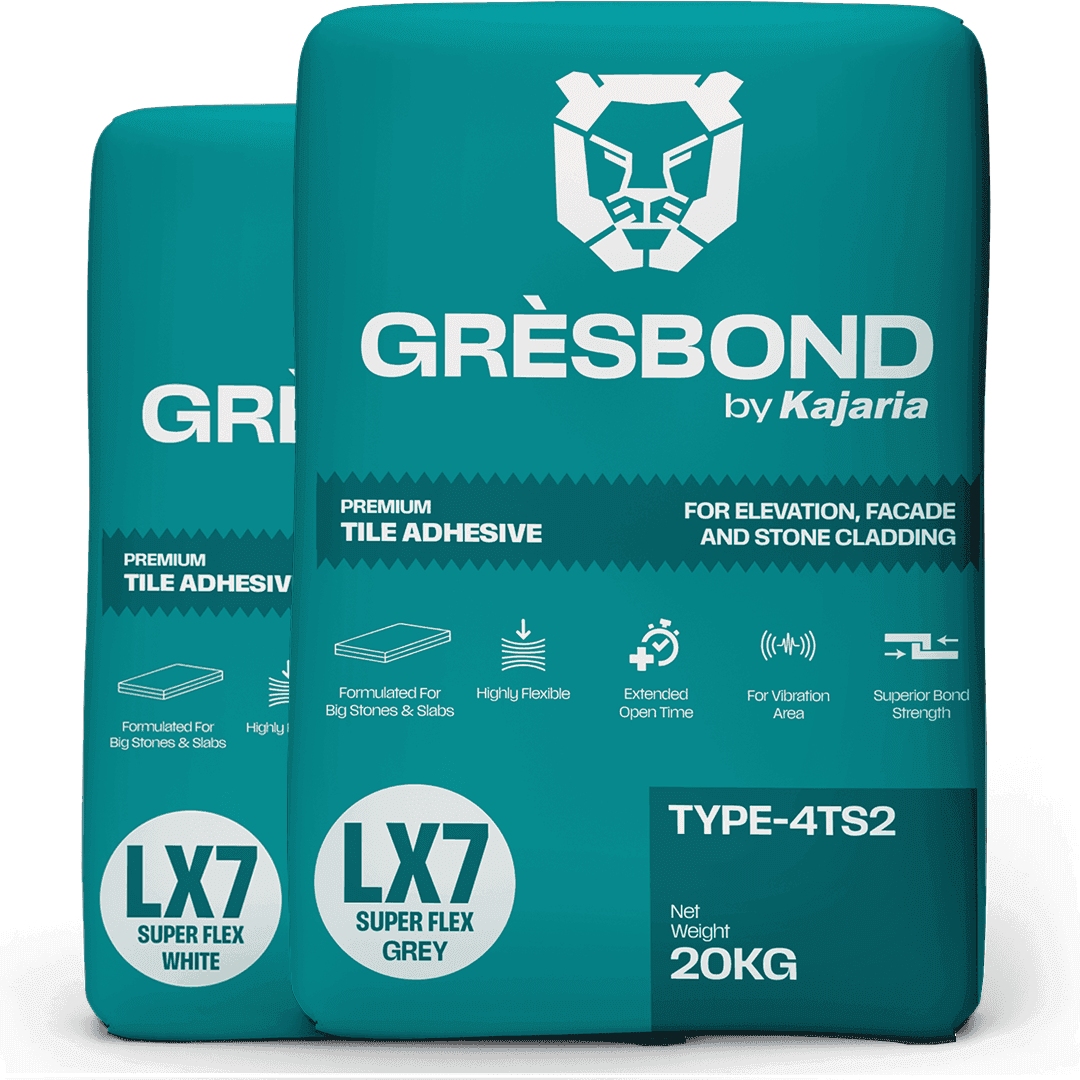

LX 7 Superflex S2
lx-7-super-flexLX-7 Superflex S2 Grey & White complies to Type 4 T S2' as per IS 15477: 2019 - Adhesives for use with ceramic, mosaic and stone tiles - Specification. Also, LX-7 Superflex S2 Grey & White conforms to class C2TES2 as per EN 12004: 2017/ ISO 13007-a cementitious (C) improved performance (2) slip resistant (T) extended open time (E) with highly deformable (S2) tile adhesive. LX-7 Superflex S2 Grey & White isa high polymer modified & highly flexible adhesive with enhanced properties of slip resistance, extended open time & excellent bond strength which is necessary for fixing large format tiles/natural stones & slim tiles on vertical & horizontal surfaces for indoor as well as outdoor application especially in external conditions, high footfall areas & on substrates subject to high deformations/vibrations.
View Product

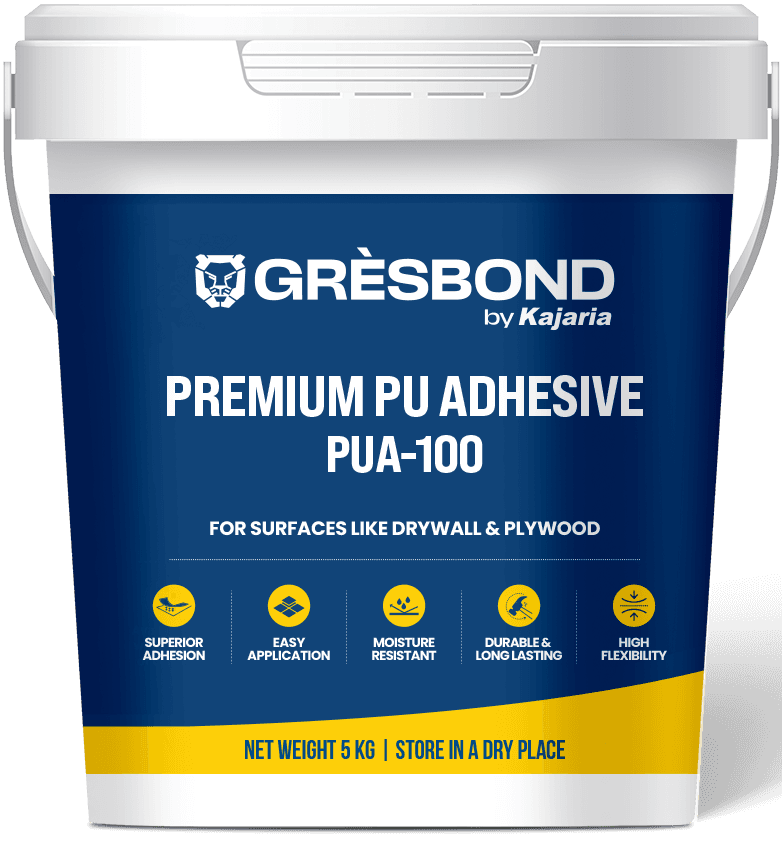

PUA 100
pua-100GRESBOND PUA-100 is a high-performance, two-component polyurethane thinset adhesive designed for superior bonding of tiles and stone on both interior and exterior floors and walls. Engineered for exceptional flexibility, it is ideal for a wide range of substrates, including metal, plywood, and drywall. This multipurpose adhesive ensures strong and durable adhesion, making it the perfect solution for challenging installations.
View ProductMethod of Application
A comprehensive, sequential procedural view designed for engineers and site applicators to attain faultless surface integration using CX-1 adhesive compounds.
Surface Preparation
Remove all Dust, Water, Oil & Sealers from Surface / Substrate to ensure full chemical contact.
Water Addition
Add 5 to 6 Liters of clean water or Admix into an empty structural mixing bucket.
Adhesive Mixing
Add 20 Kg EX-5 Thin Set Adhesive into water and mix thoroughly until it attains a perfect, uniform paste.
Slaking Period
Allow the mixed material to slake (rest) for 5 to 10 minutes to fully activate its polymer bonding properties.
Re-mixing
Mix the material again briefly without adding extra water, then transfer the material onto your notch trowel.

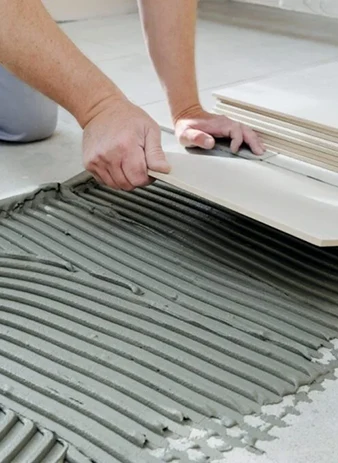

Flat Bedding
Use the flat side of the trowel to spread and press the adhesive layer uniformly onto the base substrate.

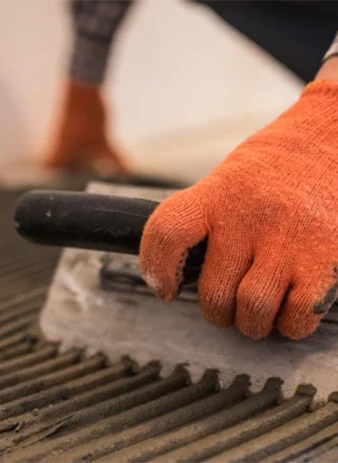

Adhesive Combing
Comb through the adhesive layer at a precise angle with the help of a correctly sized Notch Trowel.
Back Buttering
Spread the adhesive material on the backside of the tile also if the tile dimension is larger than 12\"x12\"."
Leveling
Press and tap the tile surface gently with the help of a Wooden Hammer to maintain a perfectly uniform surface plane.
Surface Cleaning
Clean the tile surface thoroughly using a clean wet cloth or damp sponge before the compound sets.
Curing Phase
Restrict all foot traffic completely across the layout zone and wait up to 24 Hours for full chemical curing.
Final Grouting
After completing the 24 Hrs wait period safely, you can immediately proceed with filling joints via the grouting process.
Installation Instructions
SURFACE PREPARATION
- Temperature and Surface Requirements:
- Ensure surfaces are between 40°F (4°C) and 104°F (40°C).
- Surfaces must be structurally sound, clean, and free of dirt, oil, grease, loose peeling paint, laitance, concrete sealers, or curing compounds.
- Surfaces should be true to plumb, with slabs accurate to within ¼” (6mm) in 10 ft (3m).
SURFACE PREPARATION
- Temperature and Surface Requirements:
- Ensure surfaces are between 40°F (4°C) and 104°F (40°C).
- Surfaces must be structurally sound, clean, and free of dirt, oil, grease, loose peeling paint, laitance, concrete sealers, or curing compounds.
- Surfaces should be true to plumb, with slabs accurate to within ¼” (6mm) in 10 ft (3m).
SURFACE SMOOTHING
- Rough or uneven concrete surfaces should be smoothed with Screed/Plaster material to achieve a wood float (or better) finish.
DAMPENING REQUIREMENTS
- Dry, dusty concrete slabs or masonry should be dampened, and excess water must be swept off.
- Installation may proceed on a damp surface.
NEW CONCRETE SLABS
- New concrete slabs should be damp-cured and must be 28 days old before application.
- No minimum cure time is required for concrete slabs when thin-set mortar is mixed with a latex additive.
EXPANSION JOINTS
- Expansion joints must be included in the tile work at all construction or expansion joints in the substrate.
- Do not cover expansion joints with thin set mortar
- For tile or stone installations on plywood and wood substrates, Gresbond PUA-100 is recommended.
- Refer to the specific product Technical Data Sheet for detailed recommendations.
FOR ALL STONES WITH A BACK-PROTECTION MESH
- It is essential to remove the mesh first.
- Also, remove the epoxy layer by light grinding to ensure a perfect bond with the adhesive.
MIXING
- Place clean, potable water into a clean mixing bowl.
- Add Gresbond EX-5 powder into the mixing bowl.
- Use approximately 5 - 5.5 litre of water for 20 kg of powder.
- Mix with a slow-speed mixer to a smooth, trowelable consistency.
- Allow adhesive to slake for 5 minutes.
- Adjust consistency if necessary.
- Remix and apply with the proper sized notched trowel.
- Contact Gresbond technical services for large format tile or stone installations on exterior surfaces.
Suitable Substrates

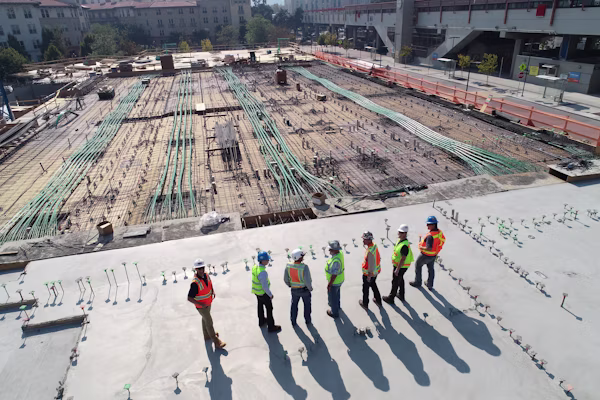

Concrete & Concrete Masonry
Standard cast-in-place slabs and exterior structural forms.
Cement Mortar Beds
Pre-cast block surfaces, foundation blocks, and walls.
Cement Plaster
Traditional levelled sand-cement underlying bases.
Glass mosaic tile
Plumbed internal wall renders and vertical surfaces.
Ceramic tile, and Natural Stone
Standard burnt clay brick or fly-ash core wall bounds.
Brick Masonry
Prior installations (Must be thoroughly cleaned and roughened).
Cement Terrazzo
Standard burnt clay brick or fly-ash core wall bounds.
Note: Surfaces must be thoroughly cleaned and roughened before the installation of tiles or stones to secure dynamic mechanical integration.
Download technical data sheets for all Gresbond products.
TDS, SDS and compliance certificates for your BOQ.
Choose the Application Area
Choose the right tile adhesive for the area you are installing your tiles.
- One adhesive system for every surface
- Zero-hollowness, permanent bond
- Indoor, outdoor & wet-area ready
Gresbond Specialist Tile Adhesives
make your tiles stay special forever.
Find an Authorized Dealer
Connect directly with our distribution network to source genuine Gresbond products near you and fulfill your project demands with confidence.
Frequently Asked Questions ?
Yes, EX-5 Tile Adhesive is not just suitable, it's the perfect choice for your exterior tile applications. This specially formulated adhesive offers excellent adhesion and durability, making it the go-to solution for a variety of outdoor tiling projects.
It is considered to be used for exterior and heavy-duty applications, so professionals prefer to buy the bulk quantity. This is available in a 20 kg bag and can be purchased through nearby dealers. The details of the dealers can be found in the section "Where to Buy."
EX-5 is a high-strength polymer-modified premium tile adhesive that offers superior bonding strength and flexibility. This makes it perfect for exterior floor tiles, as it can withstand heavy foot traffic and environmental changes. It is suitable for interior and exterior use, with the benefits of Excellent tensile and shear adhesion, Heat and weather resistance, and Thermal insulation.

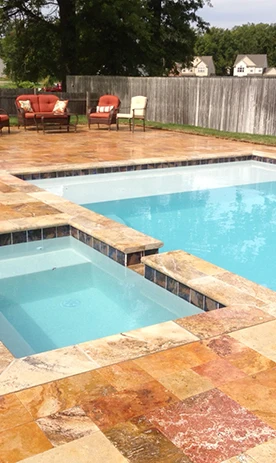

Be it stone or tile installation, EX-5 is ideal for wall cladding tiles and large format vitrified & ceramic tiles on external floors, providing robust adhesion and long-lasting durability even in harsh outdoor conditions
EX-5 outperforms traditional exterior tile cement by offering enhanced bonding strength, flexibility, and resistance to environmental factors, making it a superior choice for exterior tile projects. Professionals prefer to use technically advanced adhesion offering high strength for heavy-duty tile installation for commercial, industrial, and residential exteriors.
