Tile Spacer Sizes: How to Choose the Right Joint Width

Joint width is usually decided in the first ten minutes of a tiling job, often by whoever opens the packet of spacers first, and then it is locked in for the life of the floor. That is a lot of consequence for a decision most people treat casually. The joint is not just a design line between two tiles. It absorbs the small dimensional differences between tiles in a batch, gives the installation somewhere to put thermal movement, and carries the grout that keeps water out of the bed underneath. Choose it too narrow and the joint cannot do any of that. Choose it too wide for the grout you have bought and the joint will not fill properly. This guide covers how to pick a joint width, which spacer size goes with it, and how the choice flows through to your grout.

Key Takeaways

• Gresbond tile spacers come in 1, 2, 3 and 4 mm, at 100 pieces per packet.

• Rectified tiles with machine-cut edges can take narrow joints. Non-rectified tiles need a wider joint to absorb size variation.

• Butt jointing is not a design choice, it is a failure waiting to happen. Every installation needs a joint.

• Larger formats and exterior work generally need wider joints to handle movement.

• Joint width decides your grout. Unsanded grout suits narrow joints; wider joints need a grout rated for them.

• Spacers control width. Levelling clips control height. They are different problems.

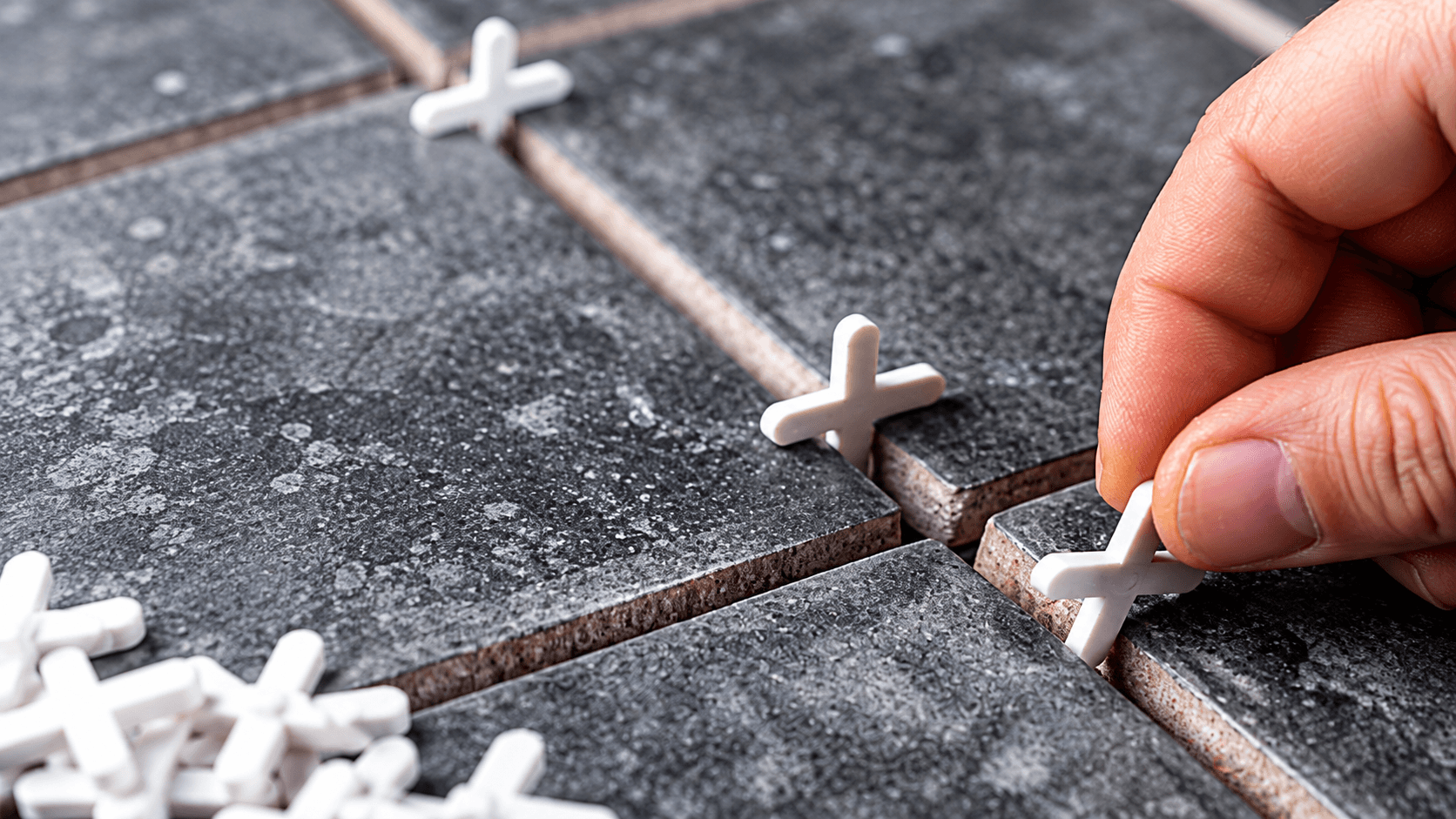

Why the joint has a job to do

Tiles are not identical. Even within one batch there is a small variation in size, and on a long run those differences add up. The joint is where that variation gets absorbed. Without it, the run drifts out of line and there is nothing you can do about it by tile twenty.

The joint also gives the floor room to move. Tiles expand with heat, the substrate moves too, and a field of tiles with no joints has nowhere to put that pressure. It ends up as tenting or cracked tiles, usually in the sunniest part of the room.

Finally, the joint holds grout, and grout is what stops water reaching the adhesive bed. A joint too narrow to take grout properly is a route for water.

Choosing your width

1 mm suits rectified porcelain in dry interior areas where a near-seamless look is wanted and the substrate is genuinely flat. It is the least forgiving option, so it demands accurate tiles and accurate work.

2 mm is the common choice for rectified large format tiles indoors. Gresbond’s own large slab guidance points to 2 to 3 mm joints for interior slab installations.

3 mm works for non-rectified tiles, natural stone and most everyday ceramic and vitrified floors. It absorbs size variation comfortably and is still visually discreet.

4 mm suits larger-format or handmade tiles, rustic finishes, and situations where more movement tolerance is wanted.

For exterior work, joints should be more generous than their interior equivalent, because facades and terraces face far greater thermal movement. Our exterior cladding fixing guide covers joint design for facades in detail.

Rectified or not? It changes the answer

A rectified tile has been mechanically cut after firing, so its edges are precise and its dimensions are consistent. That is what allows a narrow joint to work.

A non-rectified tile has a natural fired edge with slightly more variation. Force it into a 1 mm joint and the variation has nowhere to go, which produces uneven-looking joints along the run even when the work is careful. Check which type you have before you pick the spacer.

Your joint width decides your grout

This is the step people skip. Grouts are formulated for a width range, and using one outside its range causes problems.

Premium Unsanded Grout is designed for narrow joints of 1 to 3 mm. Mixing it with the KGA-01 liquid admix instead of plain water produces a denser, more colourfast joint that resists moisture far better.

For wet areas, kitchens and commercial floors, epoxy grout such as KE-100 gives a dense, stain-resistant joint. Check the stated width range for whichever grout you choose in the TDS library before you commit to a spacer size, and preview shades on the joint filler visualizer.

Spacers are not levelling clips

Worth being clear about, because the two get confused. Spacers hold consistent gaps between tiles, controlling width. Levelling clips and wedges hold adjacent tiles at the same height while the adhesive sets, controlling lippage.

On large formats you usually want both. See the tile spacers and tile levelling system pages, and our guide to tile levelling spacers for DIY installs.
